what is roll forming machine
Introduction to Roll Forming Machines

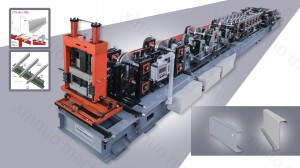

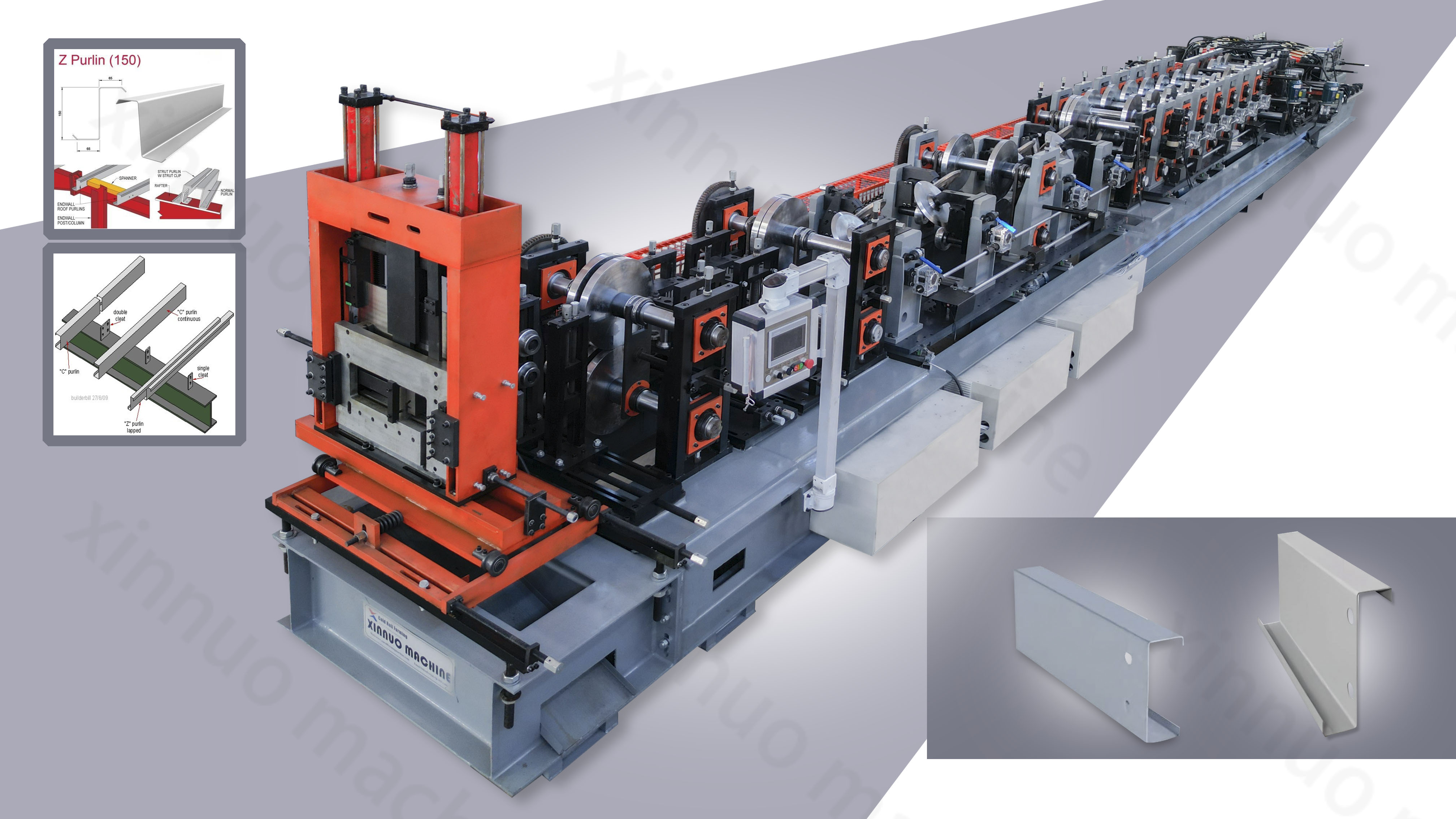

What Is a Roll Forming Machine?
Definition and Basic Principle of Roll Forming Machines:Roll forming machines are a type of metal forming equipment used to produce continuous lengths of uniform cross-sectional shapes from flat metal strips or coils. The process involves feeding the material through a series of roll stands, each set up to gradually form the desired shape. The formed parts are then cut to length and stacked for packaging.
The basic principle of roll forming is based on the use of multiple sets of rollers, or roll stands, which gradually shape the flat strip or coil into the desired profile. The rolls are designed with specific contours that determine the final shape of the product. As the material passes through each set of rolls, it undergoes plastic deformation, resulting in a permanent change in shape. The process is highly precise and can produce complex shapes with tight tolerances.
Overview of the Roll Forming Process and Its Applications: The roll forming process begins with feeding the metal strip into the entry guide of the machine, where it is then passed through a series of rollers that gradually bend and form the metal into the desired shape. These rollers are designed with specific contours to achieve the required profile. The versatility of roll forming machines enables the production of various shapes, including channels, angles, tubes, and more.
Roll forming machines find applications in various industries such as automotive, construction, aerospace, and appliance manufacturing. They are commonly used to produce components like metal roofing panels, window frames, door frames, and structural sections. The efficiency, precision, and cost-effectiveness of roll forming make it a preferred method for mass-producing complex metal profiles with consistent quality.
By understanding the definition, basic principles, and applications of roll forming machines, manufacturers can leverage this technology to streamline production processes, reduce material waste, and meet the demands of modern metal fabrication requirements.
Evolution of Roll Forming Technology
Historical Development of Roll Forming Machines: The origins of roll forming can be traced back to ancient civilizations, where metalworkers used hand-operated tools to shape metals into desired forms. However, the first known use of roll forming machines was during the Industrial Revolution in the 18th century when early machines were used to produce metal roofing panels. Over time, advancements were made in the design and functionality of roll forming machines, leading to increased production capacity and precision.
Advancements in Technology and Materials Used in Modern Roll Forming: Today, metal roll forming machines continue to evolve, with advanced technology and materials being used to improve their efficiency, precision, and versatility. Computer-aided design (CAD) and computer-aided manufacturing (CAM) software have enabled manufacturers to design and produce complex metal profiles with greater accuracy and speed. Additionally, automation and robotics have increased productivity while reducing the need for manual labor.
Materials used in modern roll forming have also expanded beyond traditional metals like steel and aluminum. High-strength alloys, composites, and even plastics are now being used to produce lightweight yet durable components with unique shapes and properties. These advancements in technology and materials have opened up new possibilities for industries like aerospace, transportation, and renewable energy.
By understanding the historical and technological evolution of roll forming machines, manufacturers can stay informed about recent developments and make informed decisions about adopting new technology or materials that can improve their production processes and competitiveness in the marketplace.
Components of a Roll Forming Machine
Understanding the Roll Forming Machine Base
The machine base of a sheet metal roll forming machine serves as the foundation that supports the entire structure and components of the machine. It is typically constructed using high-quality materials such as steel or cast iron to provide durability and stability during the forming process. The design features of the machine base are crucial in ensuring that the machine operates smoothly and accurately.
The stability and support provided by the machine base are essential for maintaining the alignment of the rolls and tooling throughout the forming process. Any deviations or vibrations in the base can affect the quality and precision of the formed profiles. Therefore, manufacturers pay close attention to the construction, material selection, and design of the machine base to ensure optimal performance and longevity of the roll forming machine.
Exploring Roll Stands and Tooling
Roll stands are one of the key components of a roll forming machine and play a vital role in shaping the metal strip into the desired profile. These stands consist of a set of rollers that incrementally bend and form the metal as it passes through the machine. The number and arrangement of roll stands can vary depending on the complexity of the profile being formed.
Tooling in roll forming machines refers to the various dies, spacers, and guides used to shape the metal strip as it moves through the roll stands. Different types of tooling are employed to achieve specific profile shapes, angles, and dimensions. The selection of tooling greatly impacts the final product’s accuracy, consistency, and surface finish. Manufacturers often customize tooling based on their unique production requirements and desired output.
Drive Systems in Roll Forming Machines
Drive systems in roll forming machines are responsible for powering and controlling the movement of the metal strip through the machine. There are several types of drive systems commonly used in roll forming machines, including mechanical, hydraulic, and servo drive systems.
Mechanical Drive Systems: These systems use gears, chains, or belts to transmit power from the motor to the roll stands. They are reliable and cost-effective for many applications but may have limitations in terms of speed and precision.
Hydraulic Drive Systems: Hydraulic systems utilize fluid power to drive the roll forming process. They offer high power and flexibility, making them suitable for heavy-duty applications that require precise control over forming forces.
Servo Drive Systems: Servo drive systems use electronic motors to provide precise and programmable control over the forming process. They offer high speed, accuracy, and repeatability, making them ideal for complex profiles and quick changeovers.
By understanding the components of a roll forming machine, including the machine base, roll stands, tooling, and drive systems, manufacturers can optimize their production processes, improve product quality, and achieve greater efficiency in metal forming operations.
Operating a Roll Forming Machine
Setting Up a Roll Forming Machine
Setting up a roll forming machine for production involves several critical steps to ensure the proper functioning and quality output of the formed profiles. The process typically includes preparing the tooling, adjusting the roll stands, and calibrating the machine to meet the specific requirements of the desired profile.
Proper alignment and calibration are crucial during the setup phase, as they directly impact the dimensional accuracy, surface finish, and overall quality of the formed profiles. Operators must carefully align the roll stands, guides, and tooling to ensure that the metal strip passes through the machine smoothly and consistently. Additionally, calibrating the machine’s speed, material feeding, and cutting mechanisms is essential to achieve the desired production parameters.
Running a Roll Forming Machine
Operating a roll forming machine involves understanding the basics of controlling the machine’s speed, material feeding, and other essential parameters to achieve the desired production output. Operators are responsible for monitoring the forming process, making adjustments as needed, and ensuring the continuous flow of material through the machine.
Speed control is a critical aspect of running a roll forming machine, as it directly affects the forming quality, production rate, and energy efficiency. Proper material feeding is equally important to maintain consistent forming results and prevent material jams or misfeeds. Additionally, operators need to be vigilant in monitoring the forming process and promptly addressing any issues that may arise, such as material slippage, tooling wear, or irregularities in the formed profiles.
Safety Considerations in Roll Forming Operations
Safety is paramount in roll forming operations, and operators must adhere to essential practices and precautions to minimize the risk of accidents and injuries. This includes wearing appropriate personal protective equipment (PPE), following safe operating procedures, and being aware of potential hazards associated with working around roll forming machines.
Operators should receive thorough training on the safe operation of cold roll forming machines, including how to identify and address common safety risks, emergency procedures, and proper handling of materials and tools. Regular maintenance and inspection of the machine’s safety features, such as guards, emergency stops, and interlocks, are also essential to ensure a safe and efficient working environment.
By emphasizing proper setup, operational procedures, and safety considerations, operators can maximize the performance of roll forming machines while ensuring a secure and productive work environment.
Applications of Roll Forming Machine
Roll forming machines are versatile industrial equipment used for shaping metal sheets into desired cross-sectional profiles. They find applications in a wide range of industries due to their efficiency, precision, and cost-effectiveness. Here are some detailed applications of roll forming machines:

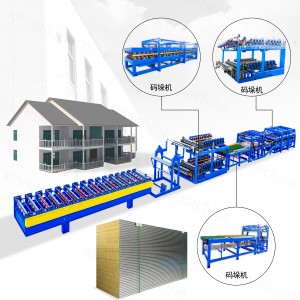

Construction Industry: Roll forming machines play a crucial role in the construction sector by producing metal components used in buildings and infrastructure. They are used for manufacturing roofing panels, wall cladding, purlins, studs, and other structural elements.
Automotive Industry: In the automotive sector, roll forming machines are utilized for creating various automotive parts with complex shapes and high strength-to-weight ratios. These include components like roof rails, door beams, bumpers, and chassis reinforcements.
Storage and Shelving Solutions: Roll forming machines are commonly employed in the production of storage and shelving systems for warehouses, factories, and retail spaces. They are used to manufacture shelf supports, racking systems, and storage racks.
Furniture Manufacturing: The furniture industry benefits from roll forming machines for producing metal components used in furniture construction. These machines are used to make items such as drawer slides, table frames, chair legs, and wardrobe fittings.
Solar Energy Sector: Roll forming machines are crucial for the solar panel industry as they are used to manufacture mounting structures and frames for solar panels. These structures need to be precise, durable, and compatible with different installation requirements.
HVAC (Heating, Ventilation, and Air Conditioning) Industry: Roll forming machines are employed to fabricate ductwork, ventilation components, air handling units, and other HVAC system parts. The ability to create custom profiles makes them ideal for this sector.
Transportation Equipment: From trailers to buses, roll forming machines are used in the transportation industry to produce components like chassis rails, side panels, and structural members for various vehicles.
Agricultural Equipment: Roll forming machines are used to manufacture agricultural equipment such as grain bins, silos, fencing, and other farm structures. The ability to produce long, continuous profiles makes them suitable for large-scale agricultural applications.
These diverse applications highlight the significance of cold roll forming machines in modern industrial processes across different sectors. Their flexibility, precision, and efficiency make them indispensable tools for manufacturing a wide range of metal products.
